基于FPGA的多級CIC濾波器實現四倍插值
在《基于FPGA的多級CIC濾波器實現四倍抽取一》和《基于FPGA的多級CIC濾波器實現四倍抽取二》中我們先來了解滑動平均濾波器、微分器、積分器以及梳狀濾波器原理以及它們的幅頻響應。此篇我們將用verilog實現基于FPGA的多級CIC濾波器實現四倍插值。
1 CIC濾波器的基本概述
??CIC（積分梳狀）濾波器是無線通信中的常用模塊，一般用于數字下變頻（DDC）和數字上變頻（DUC）系統。CIC濾波器結構簡單，只有加法器、積分器和寄存器，適合于工作在搞采樣率條件下，而且CIC濾波器是一種基于零點相消的FIR濾波器，已經被證明是在高速抽取或插值系統中非常有效的單元。
??整數倍內插是先在已知抽樣序列的相鄰兩個抽樣點之間等間隔地插入（I-1）個零值點，然后進行低通濾波器，即可求得I倍內插的結果。
??此篇我們采用多級CIC濾波器實現整數倍內插提升采樣率。
2 matlab實現CIC濾波器的四倍插值
??設計目標：將載波頻率44.1khz的1khz sine升采樣率到176.4khz。
close all
clear all
clc
?
%set system parameter
fs = 1000; ???%The frequency of the local oscillator signal
Fs = 44100; ??%sampling frequency
Fs1 = 176400;
N = ?24; ????????%Quantitative bits
L = 81920;
?
%Generating an input signal
t =0:1/Fs:(1/Fs)*(L-1); ?????????%Generating the time series of sampling frequencies
sc =sin(2*pi*fs*t); ???????%a sinusoidal input signal that produces a random starting phase
?
b =[1,-1];%comb
a =[1,-1];%integerator
?
%comb
c1=filter(b,1,sc);
c2=filter(b,1,c1);
c3=filter(b,1,c2);
?
y = upsample(c3,4);
?
%integerater
i1 =filter(1,a,y);
i2 =filter(1,a,i1);
i3 =filter(1,a,i2);
sf = i3./16;
?
f_osc =fft(sc,L);
f_osc=20*log(abs(f_osc))/log(10); ???????%換算成dBW單位
ft1=[0:(Fs/L):Fs/2]; ?????????????%轉換橫坐標以Hz為單位
f_osc=f_osc(1:length(ft1));
?
f_o =fft(sf,L);
f_o=20*log(abs(f_o))/log(10); ???????%換算成dBW單位
ft2=[0:(Fs1/L):Fs1/8]; ?????????????%轉換橫坐標以Hz為單位
f_o=f_o(1:length(ft2));
?
?

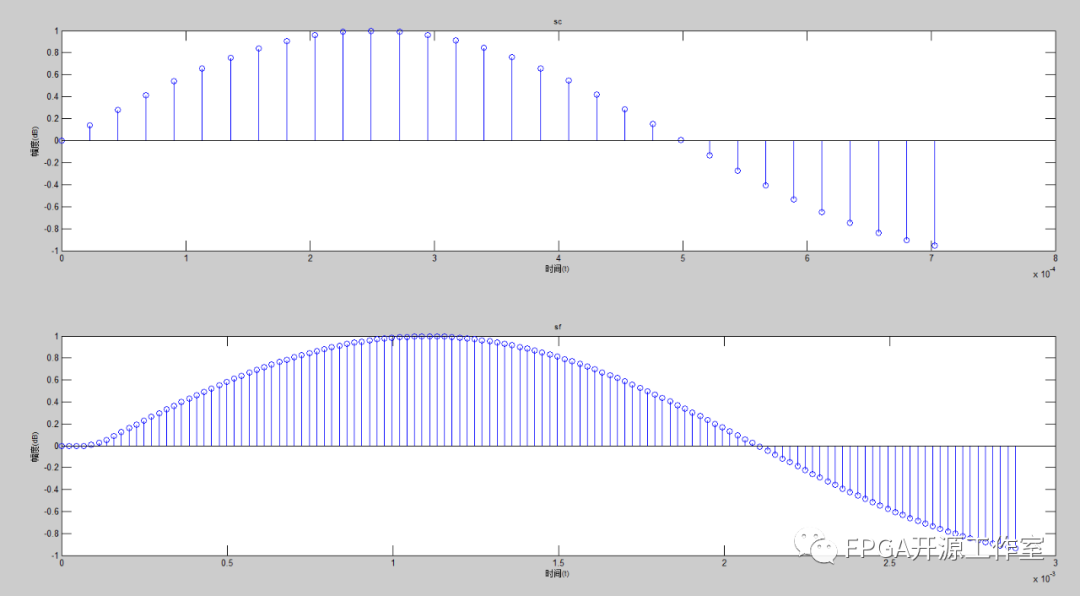

figure(1),
subplot(211),stem(t(1:32),sc(1:32));
xlabel('時間','fontsize',8);
ylabel('幅度(dB)','fontsize',8);
title('sc','fontsize',8);
subplot(212),stem(t(1:128),sf(1:128));
xlabel('時間','fontsize',8);
ylabel('幅度(dB)','fontsize',8);
title('sf','fontsize',8);
?

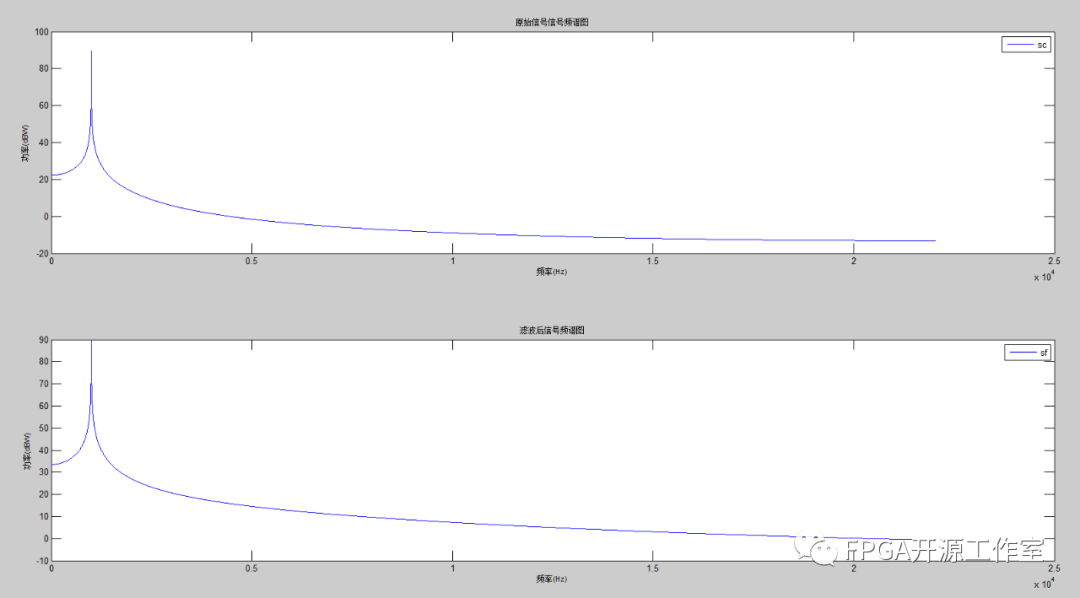

figure(2),
subplot(211),plot(ft1,f_osc);
xlabel('頻率(Hz)','fontsize',8); ylabel('功率(dBW)','fontsize',8);
title('原始信號信號頻譜圖','fontsize',8);legend('sc');
subplot(212),plot(ft2,f_o);
xlabel('頻率(Hz)','fontsize',8); ylabel('功率(dBW)','fontsize',8);
title('濾波后信號頻譜圖','fontsize',8);legend('sf');
?
?
3 FPGA實現CIC濾波器的四倍插值

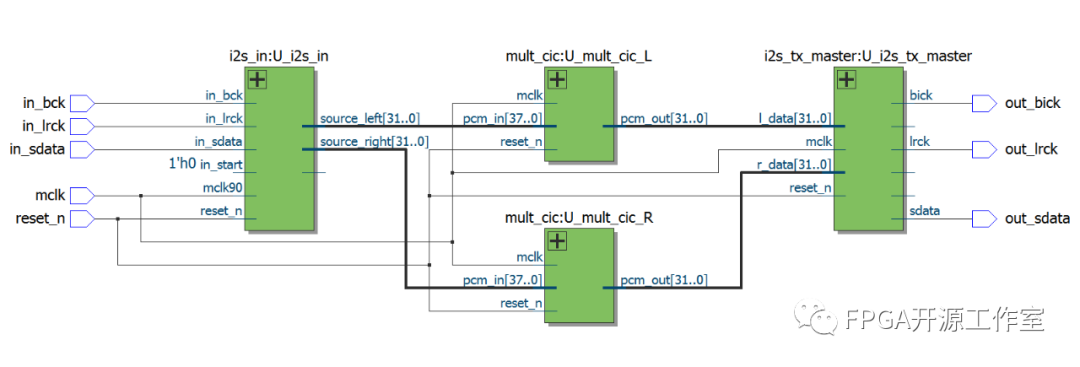

FPGA設計：FPGA由i2s輸入44.1khz的1khz sine（當然也可以是歌曲44.1khz采樣率），經過i2s串轉并后經過mult_cic模塊進行采樣率提升處理（變成176.4khz 1khz sine或者歌曲），再通過i2s_tx_master并轉串送到DAC 。
?

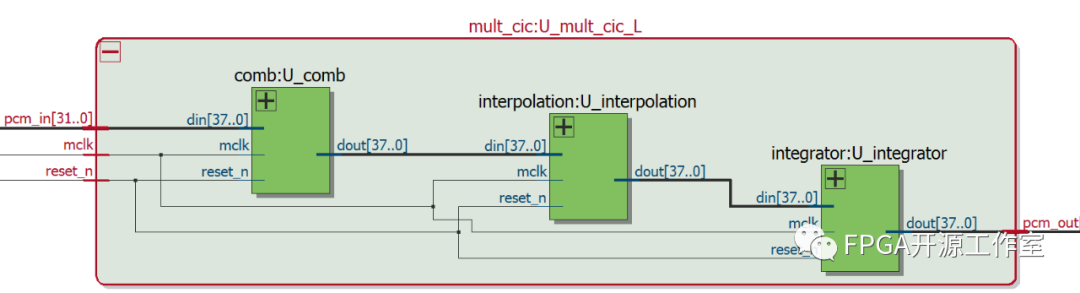

多級CIC濾波器的結構主要由梳狀濾波器+插值+積分器構成。
?
?
FPGA代碼：
`timescale 1ps/1psmodule mult_cicinput mclk,//45.1584MHZinput reset_n,input signed[31:0] pcm_in,//44.1khzoutput signed[31:0] pcm_out //176.4khz);wire signed [DW-1:0] temp;wire signed [DW-1:0]integrator_temp;wire signed [DW-1:0] interpolation_temp;wire signed [DW-1:0] comb_temp;assign temp = {{(DW-32){pcm_in[31]}},pcm_in};combU_comb(.mclk(mclk),.reset_n(reset_n),.din(temp),.dout(comb_temp));interpolationU_interpolation(.mclk(mclk),.reset_n(reset_n),.din(comb_temp),.dout(interpolation_temp));integratorU_integrator(.mclk(mclk),.reset_n(reset_n),.din(interpolation_temp),.dout(integrator_temp));//divideassign pcm_out = integrator_temp[35:4];endmodule
?
module integrator#(parameter DW = 38)(input mclk,input reset_n,input signed [DW-1:0] din,output signed [DW-1:0] dout);localparam LAST_CYCLE = 256;reg [7:0] i;reg signed [DW-1:0] temp_xin1,temp_xin2,temp_xin3;wire signed [DW-1:0] i1_temp,i2_temp,i3_temp;always @(posedge mclk or negedge reset_n) begin== 1'b0)i <= 0;else= i+1;endalways @(posedge mclk or negedge reset_n) begin //The first level integrator== 1'b0)temp_xin1 <= 0;else if(i == (LAST_CYCLE-1))temp_xin1 <= i1_temp;endassign i1_temp = (reset_n == 1'b0)?38'b0:( din + temp_xin1);always @(posedge mclk or negedge reset_n) begin //The second level integrator== 1'b0)temp_xin2 <= 0;else if(i == (LAST_CYCLE-1))temp_xin2 <= i2_temp;endassign i2_temp = (reset_n == 1'b0)?38'b0:( i1_temp + temp_xin2);always @(posedge mclk or negedge reset_n) begin //The third level integrator== 1'b0)temp_xin3 <= 0;else if(i == (LAST_CYCLE-1))temp_xin3 <= i3_temp;endassign i3_temp = (reset_n == 1'b0)?38'b0:( i2_temp + temp_xin3);assign dout = i3_temp;endmodule
?
module interpolation#(parameter DW = 38)(input mclk,input reset_n,input signed [DW-1:0] din,output signed [DW-1:0] dout);localparam LAST_CYCLE = 256;reg [9:0] i;reg signed [DW-1:0] dout_pcm;assign dout = dout_pcm;always @(posedge mclk or negedge reset_n) beginif(reset_n == 1'b0) begini <= 0;dout_pcm<=0;endelse begini<= i+1;if(i == (LAST_CYCLE-1)) dout_pcm<=din; //upsample(x,n)--n--4if(i == (LAST_CYCLE*2-1)) dout_pcm<=32'b0; //upsample(x,n)--n--4if(i == (LAST_CYCLE*3-1)) dout_pcm<=32'b0; //upsample(x,n)--n--4if(i == (LAST_CYCLE*4-1)) dout_pcm<=32'b0; //upsample(x,n)--n--4endendendmodule
?
module comb#(parameter DW = 38)(input mclk,input reset_n,input signed [DW-1:0] din,output signed [DW-1:0] dout);localparam LAST_CYCLE = 1024;reg [9:0] i;//88.2reg signed [DW-1:0] d1,d2,d3,d4;wire signed [DW-1:0] c1,c2;always @(posedge mclk or negedge reset_n) begin== 1'b0) begini <= 0;d1 <=0;d2 <=0;d3 <=0;d4 <=0;endelse begin= i+1;== (LAST_CYCLE-1)) begin=din;=d1;=c1;=c2;endendendassign c1 = (reset_n ==1'b0)?38'b0:(d1-d2);//comb1assign c2 = (reset_n ==1'b0)?38'b0:(c1-d3);//comb2assign dout =(reset_n ==1'b0)?38'b0:(c2-d4);//comb3endmodule

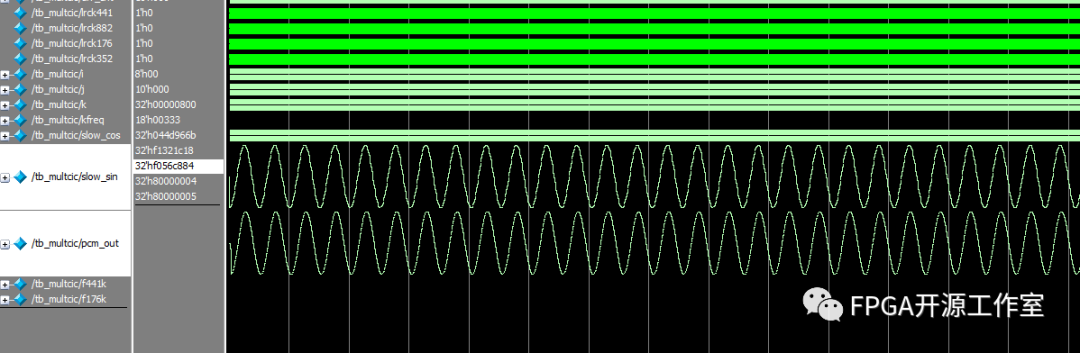

FPGA仿真:
仿真輸入1khz sine輸出依然為1khz sine，設計成功。
?
?
至此我們可以去完成3倍抽取5倍插值等采樣率轉化算法。
