Intelligent power switches from STMicroelectronics are compact, efficient, and robust

意法半導體的智能功率開關具有緊湊、高效、穩健的優勢

STMicroelectronics’IPS4140HQand IPS4140HQ-1are richly featured four-channel intelligent power switches, combining a compact 8 mm x 6 mm footprint, 80m? RDS(on) (max.) per channel, and 10.5V-36V operating range with extensive diagnostic and protection features.

意法半導體的IPS4140HQ和IPS4140HQ-1是功能豐富的四通道智能功率開關，采用緊湊型8 mm x 6 mm封裝，每通道80m? RDS(on) (最大值)，同時具有10.5V-36V工作電壓范圍，以及廣泛的診斷和保護功能。

Suited to driving any kind of resistive, capacitive, or inductive load with one side connected to the ground, the switches are used in programmable logic controllers, peripheral input/output ports of industrial PCs, and numerical control machines.

此類開關適用于驅動容性、阻性和感性負載，該負載一端接本功率開關，另一端接地?？蛇m用于可編程邏輯控制器、工業PC的外設輸入/輸出端口和數控機床。

With a preset current limit of 0.7A in the IPS4140HQ and 1.0A in the IPS4140HQ-1, the switches also tolerate 41 V maximum applied voltage to enhance system safety and reliability.

IPS4140HQ和IPS4140HQ-1的預設電流限制分別為0.7A和1.0A，開關還可以承受41 V的最大施加電壓，以提高系統的安全性和可靠性。

Per-channel protection and diagnostics include short-circuit protection, as well as temperature monitoring that can turn off and restart overloaded channels independently to maximize system-level fault tolerance and simplify automated recovery. In addition, case-overtemperature monitoring that shuts down the entire device restarts channels sequentially to avoid excessive peak-current demand on the power supply. A dedicated open-drain output pin for each channel provides an external indication of overtemperature status.

每通道具有獨立保護，包括短路保護，以及每通道溫度監測，可獨立關閉/重啟過載通道，以顯著提高系統級容錯能力并簡化自動恢復。此外，殼溫監測會關斷整個器件，并按順序重啟通道，以避免電源上的峰值電流需求過大。芯片具有每通道診斷功能，各通道的專用開漏輸出引腳可提供過溫狀態的故障指示。

Further protection and diagnostic features include short-circuit protection, output-current limiting, undervoltage lockout (UVLO), ground-disconnection protection, and input-overvoltage protection. In addition, an output voltage clamp provides fast demagnetization for inductive loads.

高級保護和診斷功能包括短路保護、輸出電流限制、欠壓鎖定 (UVLO)、接地?cái)嚅_保護和輸入過壓保護。此外，輸出電壓鉗為電感負載提供了快速退磁功能。

Made using ST’s VIPower technology, these intelligent power switches can withstand single-pulse avalanche energy (EAS) up to 2.5 J single channel and I/O pins and are compatible with 5 V and 3.3 V logic. Transient robustness meets IEC 61000-4-2 (ESD), IEC 61000-4-4 (burst), and IEC 61000-4-5 (Surge) IEC 61000-4, and electromagnetic compatibility is compliant with IEC 61131-2 for industrial equipment.

智能功率開關采用意法半導體的VIPower技術制造，可承受高達2.5 J的每通道單脈沖雪崩能量 (EAS)，I/O引腳的兼容5 V和3.3 V邏輯。瞬態穩健性符合IEC 61000-4-2(ESD)、IEC 61000—4-4（快速脈沖）和IEC 61000——4-5（浪涌）IEC 61000-4標準，而電磁兼容性則符合工業設備的IEC 61131-2標準。

The IPS4140HQ and IPS4140HQ-1 are available now in the 8 mm x 6 mm QFN48 package, priced from $ 2.59 for orders of 1000 pieces.

IPS4140HQ和IPS4140HQ-1現已上市，采用8 mm x 6 mm QFN48封裝；

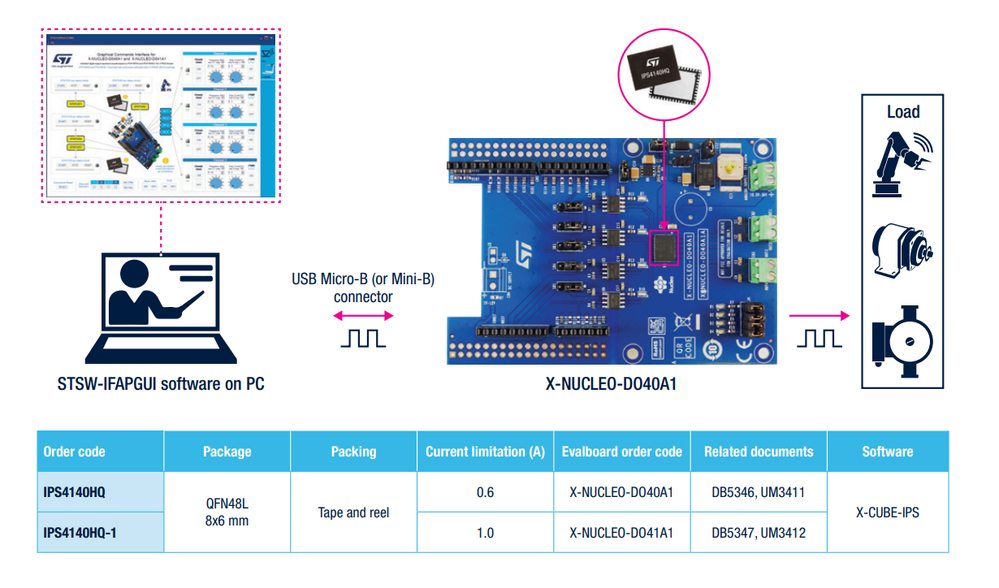

Two industrial digital-output expansion cards, X-NUCLEO-DO40A1 and X-NUCLEO-DO41A1, are also available and can be used with STM32 Nucleo microcontroller boards. They are priced $ 41.65 each.

兩款工業數字輸出擴展卡X-NUCLEO-DO40A1和X-NUCLEO-DO41A1同步推出，可與STM32 NUCLEO微控制器板搭配使用。
