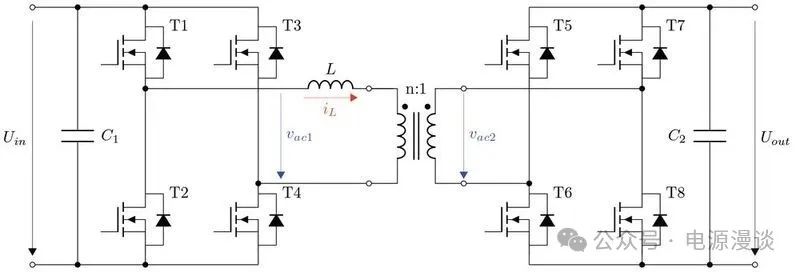

Figure 1: The structure of a DAB structure (DAB; Dual Active Bridge topology).

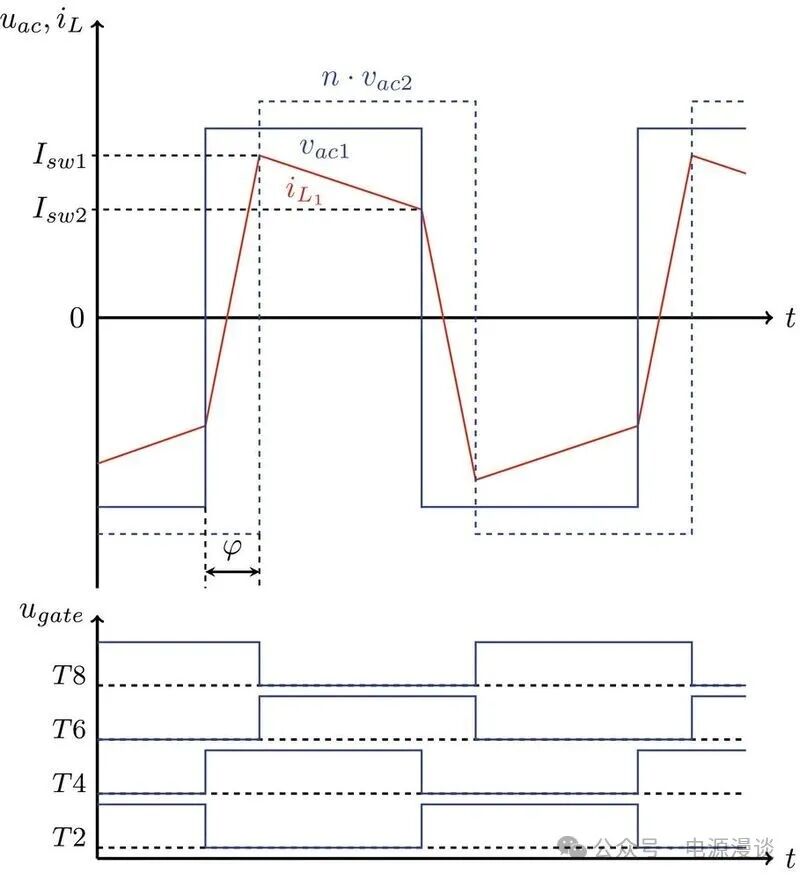

Figure 2: The principle control of the semiconductor switches.

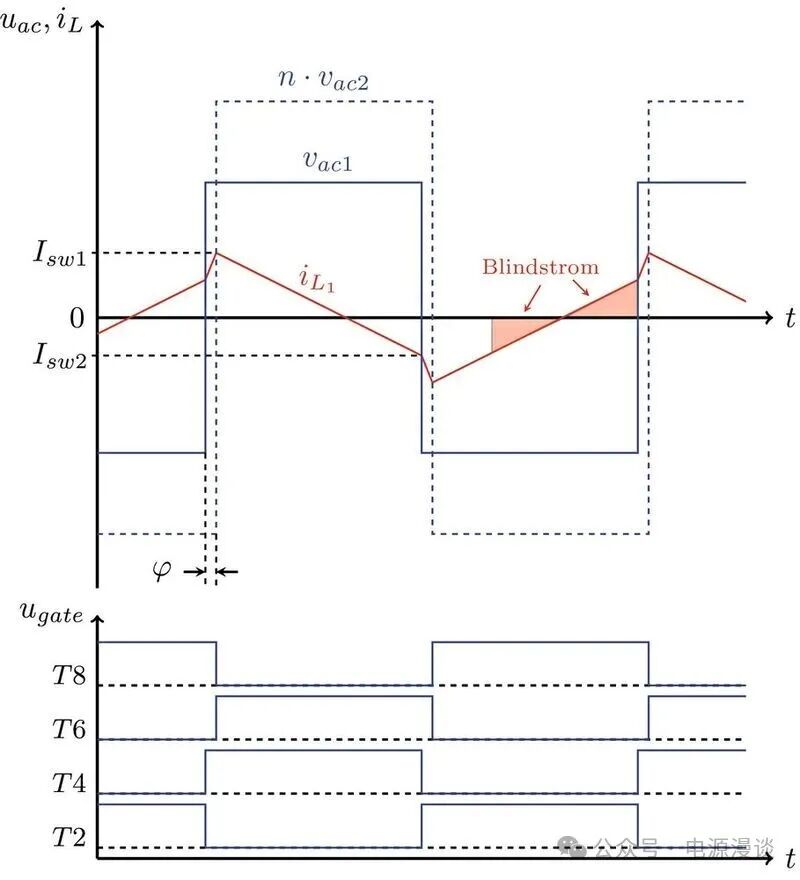

Figure 3: If the DAB is operated at very low power using the standard phase shift control, ZVS can no longer be used for switching.
